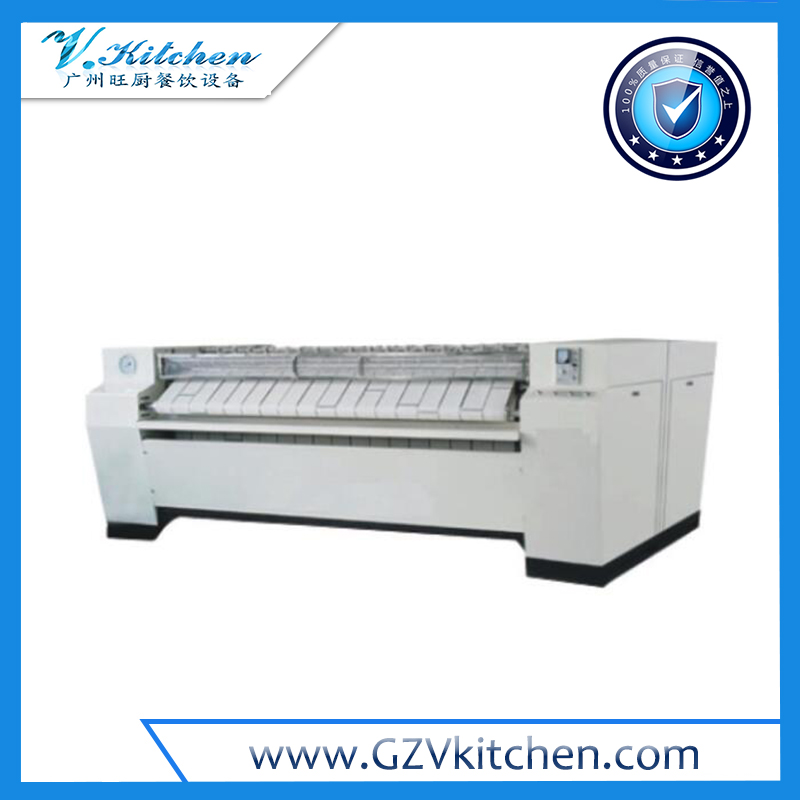

Flatwork Ironer

  • Flatwork Ironer Double Roller
Flatwork Ironer Double Roller

Flatwork Ironer Double Roller

  • Model: VLFWS3II
  • Dimension: 4200*2150*1385
  • Roller Length: 3M
  • Power: 380/3/50, 82.6kw
  • Product description: Flatwork Ironer Double Roller, Heating Optional electrical & steam.
  • INQUIRY

Description:

Max Iron Smooth Width 3000mm, Optional 2800mm to Specify Size

Max Iron Smooth Temperature 150℃

Ironing Speed 3~15M/min

Converter Power 1.5kw

Motor Power 2.2kw

Optional Electrical Heating: 380/3/50, 80.0kw; Total Power 380/3/50, 82.6kw

Optional Steam Heating: Steam Pressure 0.4~0.6/mpa; Consumes of Steam 280/kg, Run Power 380/3/50, 2.2kw

Details:

  1. Simple chain drive mechanism with single motor
  2. Heating roll made of high quality Stainless steel drum (4mm Thickness).
  3. Large contact area of 200 degree to maximum heating exchange
  4. Variable speed frequency inverter control, users can choose the suitable speed for different textiles.
  5. Gradual speed increment between rolls to improve ironing quality by stretching effect
  6. Equipped with finger protection bar
  7. Simple control with on/off button
  8. Heating roll and guide shaft drive simultaneously
  9. Float type steam trap reduces steam consumption
